Maintaining qubit coherence is paramount for the successful operation of quantum processors, and advanced cryogenic systems are fundamental to achieving this. Qubits, the building blocks of quantum computers, are incredibly sensitive to their environment. Thermal energy and other environmental "noise" like vibrations or electromagnetic fields can cause qubits to lose their quantum states through a process called decoherence, leading to computational errors. Cryogenic systems create the ultra-low temperature environments, often near absolute zero (0 Kelvin, -273.15°C, or -459.67°F), necessary to minimize this thermal noise and thus extend qubit coherence times.
Key Roles of Cryogenics in Quantum Computing:- Reducing Thermal Noise: At extremely low temperatures, atomic and particle vibrations are significantly reduced. This minimizes a major source of interference that can disrupt delicate quantum states, allowing qubits to remain coherent for longer periods.
- Enabling Superconductivity: Many leading qubit modalities, such as superconducting qubits used by companies like Google and IBM, rely on materials that exhibit superconductivity – the ability to conduct electricity with zero resistance. This phenomenon only occurs at cryogenic temperatures. Superconductivity is crucial for creating and maintaining qubit states with minimal energy loss.
- Stabilizing Quantum States: The low-temperature environment helps to isolate and stabilize qubits, making them easier to control and measure with high fidelity. This improved control and longer coherence times are essential for performing complex quantum algorithms accurately.
The field of cryogenics for quantum computing is rapidly evolving to meet the demands of larger and more powerful quantum processors. Key areas of advancement include:

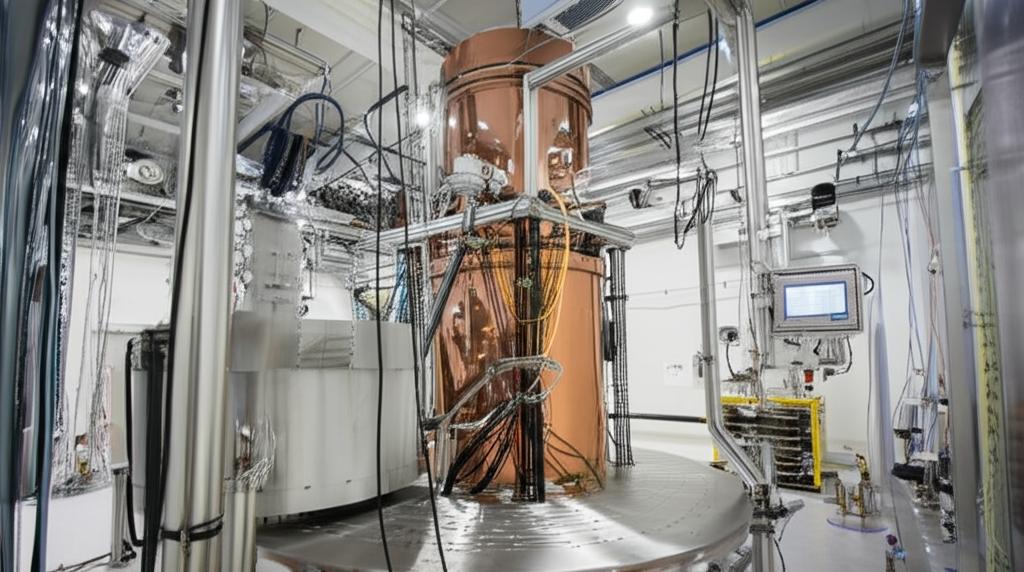

- Dilution Refrigerators: These are a cornerstone of cryogenic systems for quantum computing, capable of reaching millikelvin (mK) temperatures. Innovations continue to improve their cooling power, temperature stability, and efficiency. For example, ULVAC recently delivered a cryogenic system for Japan's first fully domestic quantum computer, providing a stable base temperature of approximately 10 mK over extended periods.
- Cryo-CMOS Technology: Integrating control electronics closer to the qubits at cryogenic temperatures can reduce latency and wiring complexity. Companies like SemiQon and collaborations involving Semiwise, SureCore, and Cadence are developing cryo-complementary metal-oxide-semiconductor (Cryo-CMOS) circuits that can operate efficiently at these extreme temperatures. These circuits are designed for low power consumption and high-speed operation, which is crucial for scaling quantum systems. SemiQon, for instance, unveiled a cryo-CMOS transistor in late 2024 designed to operate at 1 Kelvin or below, consuming significantly less power than traditional transistors.
- Modular and Scalable Designs: As qubit counts increase, the cryogenic infrastructure must scale accordingly. Companies like Bluefors are developing modular cryogenic platforms, such as their KIDE system, which can support the infrastructure for over 1,000 qubits and allow for easier access and interconnectivity between multiple units. Google has also patented a seven-stage cryogenic cooling system designed for multi-unit scaling, aiming for better temperature efficiency and interaction between classical and quantum components.
- Improved Materials and Insulation: Research into novel materials and advanced insulation techniques is ongoing to reduce heat leakage into the cryogenic environment, improving thermal management and overall system efficiency.
- Vibration Isolation: Minimizing mechanical vibrations is critical as they can disturb qubit coherence. Advanced cryogenic systems incorporate sophisticated vibration isolation techniques.
- Alternative Cooling Methods: While dilution refrigerators are prevalent, research continues into other cooling techniques like adiabatic demagnetization refrigeration (ADR), which offers cooling without complex and expensive traditional cryogenics, and laser cooling for specific qubit types. VTT Technical Research Centre of Finland is exploring an electrical cooling method using thermionic devices.
- Enhanced Cryogenic Testing: FormFactor has developed high-speed cryogenic testing systems, like the HPD IQ2000 chip scale prober, capable of testing complex quantum chips with numerous connections at temperatures as low as 2 Kelvin in a short timeframe. This accelerates the development and validation of quantum hardware.
- System Integration and Automation: Efforts are underway to make cryogenic systems more compact, automated, and easier to integrate into existing infrastructure, like standard server racks. Attocube's attoCMC system, for example, aims to bring cryogenic cooling from research labs to industrial applications with a compact, automated design.
Despite significant progress, challenges remain:
- Scaling Complexity: As the number of qubits increases, the cooling power requirements and the complexity of managing heat loads from control wiring and interconnects also increase significantly. Maintaining temperature uniformity across a larger system is also a hurdle.
- Heat Dissipation: Integrating control electronics closer to the qubits, while beneficial for performance, can increase power consumption and heat generation within the cryostat, potentially disrupting qubit operation.
- Cost and Energy Consumption: Current cryogenic systems, particularly large-scale dilution refrigerators, can be expensive to purchase and operate, and they consume considerable power.
- Wiring Bottlenecks: Connecting and controlling thousands or millions of qubits requires a massive number of wires running into the cryogenic environment, which introduces heat load and complexity. Innovations in cryo-CMOS and potentially photonic interconnects are aimed at addressing this.
- Material Defects: Tiny imperfections in the materials used to fabricate qubits, known as two-level systems (TLS), can cause qubit frequencies to drift and introduce errors. Understanding and mitigating these defects, which can be influenced by cryogenic conditions, is an ongoing research area.
- Maintenance and Accessibility: Cryogenic systems require specialized maintenance, and accessing components within the ultra-cold environment can be time-consuming as systems need to be warmed up and cooled down, a process that can take days. Modular designs aim to alleviate some of these issues.
The development of advanced cryogenic systems is inextricably linked to progress in quantum computing. Future advancements will likely focus on:
- Greater Efficiency and Compactness: Making cryogenic systems smaller, more power-efficient, and less expensive will be crucial for wider adoption and scaling of quantum computers.
- Higher Cooling Power: Systems capable of handling the heat loads from millions of qubits and their associated control electronics will be necessary for fault-tolerant quantum computing.
- Seamless Integration: Tighter integration of cryogenic components with quantum hardware and control systems will continue to be a focus.
- New Materials and Techniques: Ongoing research will explore novel materials for cryogenics and qubit fabrication, as well as new cooling mechanisms.
- Standardization and Modularity: Efforts like the ARCTIC project in Europe aim to establish a comprehensive supply chain for cryogenic technologies, fostering standardization and enabling easier integration.
In conclusion, sophisticated cryogenic cooling is not just a peripheral requirement but a core enabling technology for realizing the potential of quantum processors. By providing the stable, ultra-cold environment necessary to protect delicate qubit states from thermal decoherence, advanced cryogenic systems are paving the way for more powerful, reliable, and scalable quantum computers. The continuous innovation in this field is critical to overcoming the challenges and unlocking the transformative capabilities of quantum computation.
