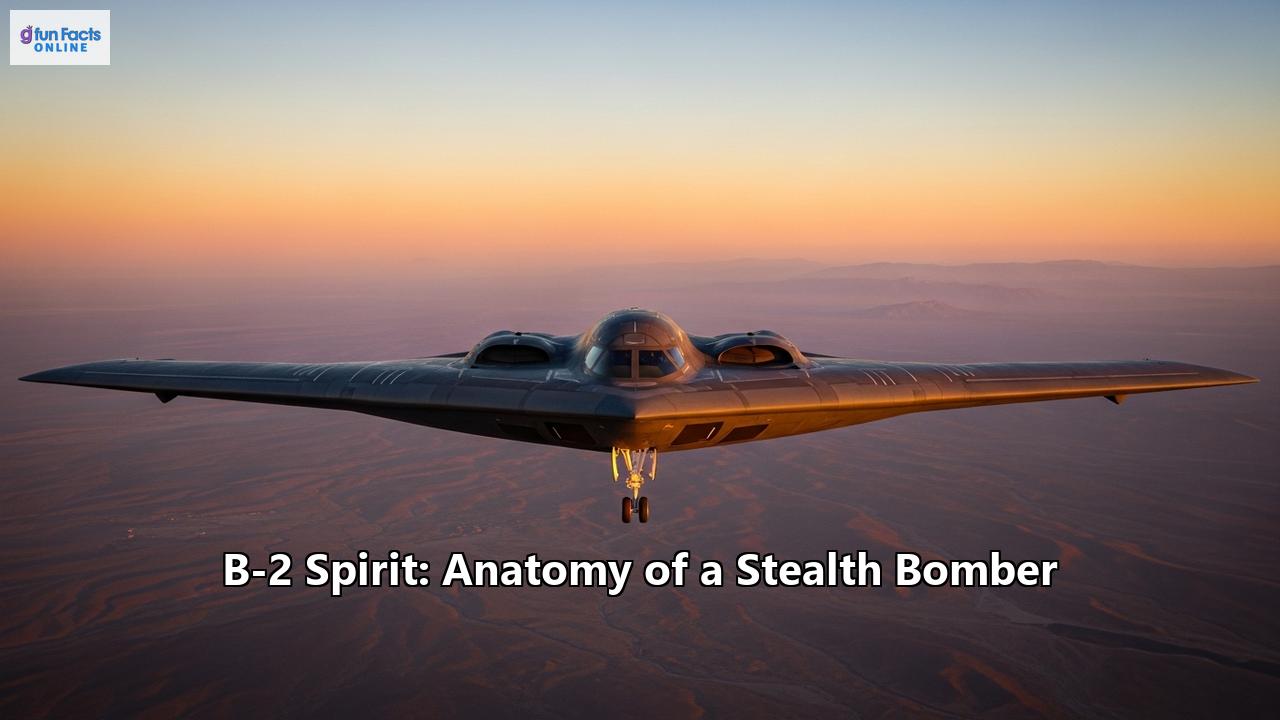

B-2 Spirit: Anatomy of a Stealth Bomber

An icon of American airpower and a marvel of modern engineering, the Northrop Grumman B-2 Spirit strikes an imposing and futuristic figure against the sky. More than just an aircraft, it is a symbol of technological prowess, a strategic asset of immense importance, and a platform shrouded in secrecy. This deep dive will explore the intricate anatomy of this legendary stealth bomber, from its revolutionary design to its devastating capabilities.

The Genesis of a Ghost: A Cold War Requirement

The B-2 Spirit was conceived during the tense final decades of the Cold War, a period defined by the high-stakes strategic chess match between the United States and the Soviet Union. The driving force behind its creation was the need for an aircraft capable of penetrating the increasingly sophisticated and dense air defense networks of the Soviet Union to deliver nuclear payloads to critical targets. This demanding requirement necessitated a radical departure from conventional aircraft design, leading to the development of what would become the world's most advanced and expensive bomber. The project, initially known as the Advanced Technology Bomber (ATB), was awarded to Northrop, with significant contributions from Boeing and other defense contractors.

A Revolutionary Design: The Flying Wing

The most striking feature of the B-2 is its "flying wing" design, a configuration that lacks a traditional fuselage and tail. This radical shape, a concept championed by aviation pioneer Jack Northrop as far back as the 1940s with the YB-49, was key to achieving the aircraft's stealth characteristics. The smooth, blended surfaces and the absence of vertical stabilizers significantly reduce its radar cross-section, making it incredibly difficult for enemy radar to detect.

The B-2's impressive dimensions include a wingspan of 172 feet (52.4 meters), a length of 69 feet (21 meters), and a height of 17 feet (5.18 meters). To put its wingspan into perspective, it is roughly half the length of a football field.

Key Specifications:

Crew: Two (a pilot and a mission commander).
Length: 69 feet (21.0 m).
Wingspan: 172 feet (52.4 m).
Height: 17 feet (5.18 m).
Empty weight: 158,000 lb (71,700 kg).
Maximum takeoff weight: 336,500 lb (152,634 kg).
Powerplant: Four General Electric F118-GE-100 non-afterburning turbofans, each producing 17,300 lbf (77 kN) of thrust.

The Heart of Invisibility: Stealth Technology

The B-2's "low-observable" or "stealth" characteristics are the cornerstone of its design, enabling it to operate in heavily defended airspace with a high degree of survivability. This is not achieved by a single technology but through a multi-faceted approach that minimizes its acoustic, infrared, visual, and radar signatures.

A key element is the aircraft's shape. The continuous curvature of its surfaces is designed to deflect radar waves away from the emitting source, rather than reflecting them back. The leading edge of the wing is swept back at a 33-degree angle, and the trailing edge has a distinctive sawtooth pattern, both of which help to scatter radar energy.

The B-2 is also constructed using advanced composite materials, primarily carbon-graphite composites, which are designed to absorb radar energy. Up to 80% of the aircraft is made from these materials, which not only contribute to its stealth but also provide a high strength-to-weight ratio. A special, classified coating is also applied to the aircraft's surface to further reduce its radar signature.

To minimize its infrared signature, the B-2's four General Electric F118-GE-100 engines are buried deep within the aircraft's wings. The engine intakes are located on the top of the wings to shield them from ground-based detection, and the exhaust nozzles are designed to cool the hot exhaust gases before they are expelled, making it harder for heat-seeking missiles to lock on.

The Brains of the Operation: Cockpit and Avionics

Inside the B-2's cockpit, a two-person crew, a pilot and a mission commander, command this technological marvel. The cockpit is equipped with advanced avionics and a highly sophisticated fly-by-wire system. This computerized system is essential for controlling the inherently unstable flying wing design. The pilot's inputs are sent to a flight computer, which then makes constant, minute adjustments to the aircraft's control surfaces to maintain stability. The system is so advanced that it can counteract turbulence without the pilots even noticing.

The B-2 utilizes a complex system of control surfaces along the trailing edge of its wings, including elevons that control pitch and roll, and split rudders that provide yaw control. The "beaver tail," a flap in the center of the trailing edge, also aids in gust load alleviation. For navigation and targeting, the B-2 is equipped with the AN/APQ-181 radar, which has a low probability of being intercepted by enemy sensors.

Power and Performance: Reaching Across the Globe

The B-2 is a high-subsonic aircraft with a service ceiling of 50,000 feet. Its unrefueled range is approximately 6,000 nautical miles (11,000 km), and with a single mid-air refueling, its range extends to over 10,000 nautical miles (18,500 km), giving it a truly global reach. The aircraft can take on up to 50 short tons of fuel during a single refueling. These long-endurance missions, some lasting over 44 hours, are a testament to the aircraft's design and the resilience of its crews.

A Devastating Payload: Weapons of the Spirit

The B-2 was designed as both a conventional and nuclear bomber. It has two internal bomb bays that can carry a total of 40,000 pounds (18,000 kg) of ordnance. Carrying weapons internally is crucial for maintaining the aircraft's stealth profile.

The B-2's arsenal is diverse and formidable:

Conventional Weapons: It can carry up to eighty 500-pound class Mk 82 JDAM GPS-guided bombs, sixteen 2,000-pound GBU-31 JDAMs, or a variety of other precision-guided munitions.
Standoff Weapons: The B-2 can deploy long-range standoff weapons like the Joint Air-to-Surface Standoff Missile (JASSM), allowing it to strike targets from a safe distance.
Nuclear Weapons: As a key component of the U.S. nuclear triad, the B-2 can carry nuclear gravity bombs such as the B61 and B83. It can carry up to 16 B83 nuclear bombs.
Bunker Busters: The B-2 is the only aircraft capable of delivering the 30,000-pound GBU-57 Massive Ordnance Penetrator (MOP), a weapon designed to destroy deeply buried and hardened targets.

Operational History and Future

The B-2 first saw combat during the Kosovo War in 1999 and has since been deployed in conflicts in Afghanistan, Iraq, and Libya. Its ability to fly long-duration missions from its home base in Missouri, strike high-value targets with precision, and return safely has made it an invaluable asset. In one notable instance during Operation Allied Force, two B-2s flew for over 31 hours from Missouri to Kosovo, destroyed 33 percent of the initial targets in the first eight weeks of the conflict, despite flying less than 1 percent of the total missions.

Originally, the plan was to produce 132 B-2s, but with the end of the Cold War and the staggering cost of each aircraft—over $2 billion per plane including development—production was capped at just 21 units. One B-2 was lost in a crash in 2008.

Northrop Grumman continues to modernize the B-2 fleet to ensure it remains effective against evolving threats. Upgrades have included new radar systems, advanced communications equipment, and the integration of new weapons. The B-2 is expected to be in service for the foreseeable future, operating alongside its successor, the Northrop Grumman B-21 Raider, which is currently in development.
